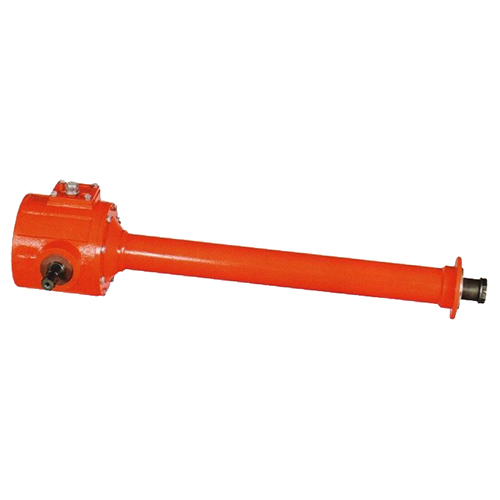

Heavy Duty Single Speed Gear Box Fitted with 13x23 Bevel Set of 8 Module

Send Inquiry

Request To Call Back

Heavy Duty Single Speed Gear Box Fitted with 13x23 Bevel Set of 8 Module

Get a Price/Quote

MOQ : 10 Pieces

Heavy Duty Single Speed Gear Box Fitted with 13x23 Bevel Set of 8 Module Specification

Hardness
HB 250-300 (Gear Surface Hardened)

Load Capacity
Up to 10,000 Nm

Tolerance
+/- 0.01 mm (Gear Precision)

Finishing
Corrosion Resistant Paint

Part Name
Single Speed Bevel Gearbox

Mounting Type
Foot Mounted

Pressure Range
Up to 18-22 bar

Lubrication Type
Splash Lubrication with Gear Oil

Use
Industrial Transmission Applications

Bearing Type
Taper Roller Bearings

Model No
HDSSGB-1323/8M

Sealing Type
Double Lip Oil Seals

Product Type
Heavy Duty Single Speed Gear Box

Material
High Grade Alloy Steel

Technology
Bevel Gear Transmission Technology

Part Type
Bevel Gear Box

Power Mode
Mechanical Drive

Technique
Precision Machining

Surface Treatment
Heat Treated & Ground

Size
Bevel Set 13x23, 8 Module

Dimension (L*W*H)
Approx. 560 mm x 420 mm x 320 mm

Weight
120 kg (approx)

Color
Industrial Blue with Polished Shafts

Gear Ratio
1:1.76

Temperature Range
-10C to +70C

Torque Transmission
Continuous Duty

IP Rating
IP54

Output Shaft Diameter
55 mm

Housing Material
Cast Iron (Grade FG260)

Gear Module
8 module

Shaft Material
En24 Steel, Surface Hardened

Input/Output Configuration
Parallel Shaft, Right Angle Drive

Service Factor
1.5

Coupling Compatibility
Standard Keyed Shaft Coupling

Input Speed
Maximum 1440 RPM

Gear Set
13 teeth pinion x 23 teeth gear

Noise Level
< 80 dB at Maximum Speed

Heavy Duty Single Speed Gear Box Fitted with 13x23 Bevel Set of 8 Module Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Heavy Duty Single Speed Gear Box Fitted with 13x23 Bevel Set of 8 Module

Buy online the Heavy Duty Single Speed Gear Box fitted with the sought-after 13x23 Bevel Set of 8 Module, an immaculate choice for industrial transmission applications. Engineered for excellence, this affordable and in-demand gearbox delivers a superior gear ratio of 1:1.76 and can handle a continuous torque of up to 10,000 Nm. Constructed with cast iron housing (Grade FG260) and surface-hardened En24 steel shafts, it guarantees reliability under demanding conditions. Featuring precision machining, standard keyed shaft coupling, and a robust IP54 rating, this model ensures long-lasting and efficient performance.

Features, Uses & Directions for Heavy Duty Single Speed Gear Box

This heavy duty single speed gear box is designed for straightforward foot-mounting, ensuring hassle-free installation in industrial environments. Ideally fitted for commercial purposes such as conveyor systems, mixers, and heavy machinery, it offers right-angle drive with parallel shaft input/output for maximum efficiency. Notable features include a high load capacity (up to 10,000 Nm), double lip oil seals, and durable heat-treated alloy steel. Always select correct lubrication and check alignment before commissioning for optimal results.

Payment Terms, Sample Options & Supply Ability - Hassle-Free Purchase

Benefit from our quick dispatch and estimate system-most orders for the 13x23 bevel gear box are fulfilled with immediate handover. Flexible payment terms make it convenient for manufacturers and suppliers to buy online. Samples can be provided on request, allowing for quality inspections before bulk orders. Our excellent supply ability guarantees steady availability to meet high industrial demand, helping you maintain smooth operations without delays.

FAQ's of Heavy Duty Single Speed Gear Box Fitted with 13x23 Bevel Set of 8 Module:

Q: How does the Heavy Duty Single Speed Gear Box improve industrial transmission efficiency?

A: The gear box utilizes a precision engineered 13x23 bevel set with an 8 module and a gear ratio of 1:1.76 to ensure smooth, reliable torque transmission for continuous duty applications, thereby improving machinery efficiency.

Q: What are the main commercial uses of this gear box?

A: This gear box is primarily used in heavy-duty industrial applications such as conveyors, mixers, and large machinery that require robust, continuous power transmission and high load capacity.

Q: Where is the Heavy Duty Single Speed Gear Box commonly installed?

A: It is typically foot-mounted in industrial settings, including manufacturing plants and processing facilities, where right-angle and parallel shaft transmission configurations are essential.

Q: What is the process for ordering and receiving the gear box?

A: Simply order online through our platform, and benefit from our quick dispatch and handover system. Samples are available on request, and payment terms can be tailored to your needs, ensuring a smooth purchase experience.

Q: What makes this gear box a reliable choice for industrial use?

A: Constructed with cast iron housing and EN24 steel shafts, featuring precision machining and surface hardening, the gear box is designed for high durability, reduced maintenance, and excellent resistance to wear and corrosion.
